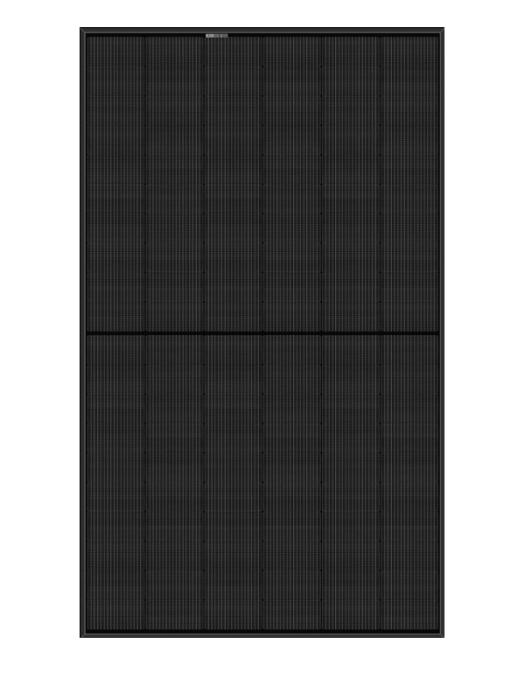

REC Alpha Pure-RX_Series
REC ALPHA®
PURE-RX
450 – 470W
HETEROJUNCTION
TECHNOLOGY
22.6%
MAX EFFICIENCY
>92% POWER IN YEAR 25 -0.24%/°C TEMPERATURE
COEFFICIENT OF PMAX
GENERAL DATA
Cell Type 88 half-cut bifacial REC heterojunction cells,
with gapless technology
Glass 0.13 in solar glass with anti-reflective surface treatment
in accordance with EN12150
Backsheet Highly resistant polymer (Black)
Frame Anodized aluminum (Black)
Junction Box 4-part, 4 bypass diodes,
IP68 rated, in accordance with IEC 62790:2020
Connectors Stäubli MC4 PV-KBT4/KST4 (12 AWG)
in accordance with IEC 62852:2014, IP68 only when connected
Cable 12 AWG solar cable, 59.1 in (1.50 m) + 59.1 in (1.50 m)
in accordance with EN50618:2014
Dimensions 68.0 x 47.4 x 1.2 in (22.4 ft²) / 1728 x 1205 x 30 mm (2.08 m²)
Weight 50.0 lb / 22.7 kg
Origin Made in Singapore
